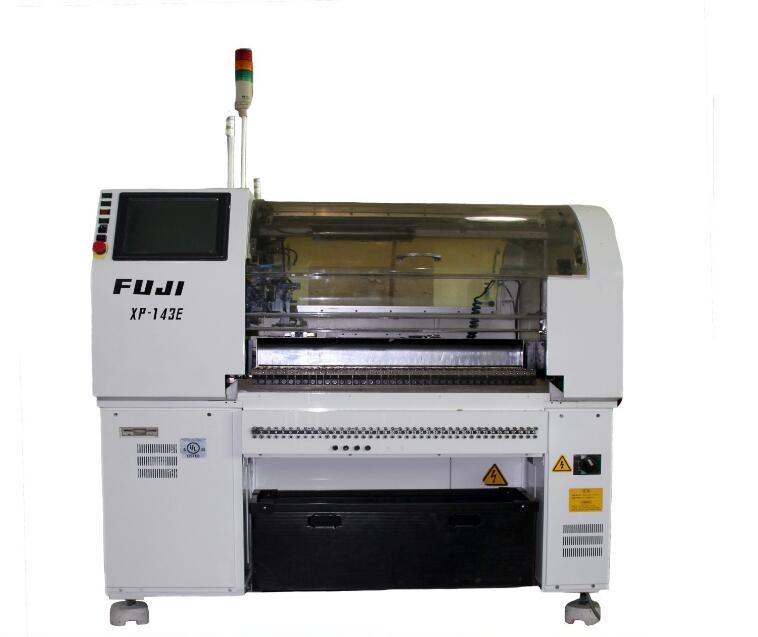

SMT FUJI XP143E SMT PICK AND PLACE MACHINE
Name: FUJI pick and place machine
Brand: FUJI
Model: FUJI XP143E pick and place machine
Specification: FUJI XP143E pick and place machine
Condition: original
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
Usage:
The FUJI XP143E machine is used in the SMT assembly process, which typically involves the following steps:
1. Component Loading: Components are loaded into feeders or trays, which are then attached to the XP143E machine. The machine's control system identifies the component type and selects the appropriate nozzle for handling.
2. Component Picking: The selected nozzle picks up the component from the feeder or tray using vacuum or other mechanisms. The vision system ensures accurate component alignment and orientation.
3. Component Placement: The nozzle precisely places the component onto the designated location on the PCB. The control system ensures accurate placement based on the PCB layout and component specifications.
4. Repetition: The process of picking and placing components is repeated for each component on the PCB, utilizing the multi-head configuration to enhance speed and efficiency.
5. Inspection: Once all components are placed, the PCB may undergo inspection to verify the accuracy and quality of the assembly.
FUJI XP143 basic features:
1. Mount 0402(01005) extremely small chip;
2. BGA and CSP can also be pasted with options;
3. Expand the maximum component to 25*2Omm;
4, equipped with a single plate platform, suction nozzle automatic replacement;
5. Equipped with sending side buffering function, no exhaust patch function;
